To Start Engine On Engine Stand Wiring - Building an engine is difficult work, and to really be able to get at all sides of the engine, an engine stand is the best way to go. There are tons of different engines out there, and lots of different configurations, but for this article we'll use a Chevrolet 5.7l V8. Feb 29, 2008  · Re: starting an outboard on a stand Running an outboard without a battery connected to it will likely pop the regulator/rectifier. The engine has a magneto ignition system so no battery is required except for starting.. Jan 08, 2010  · Re: Starting Mercruiser on Engine Stand I put a jumper wire between socket # 1 & #2 If you did this then this is why it is getting hot and not starting.Un hook this wire you do not need it right now. All you need to do is jump #'s 5 & 6 Then touch # 6 to number 7 till it starts then pull # 7 when started, And to stop engine pull 5 or 6. your done..

The Mighty Mount's heavy duty 11 gauge steel construction features a tough powder coated finish. The Mighty Mount Engine Test Running Stand comes with your choice of mounts for Chevy small and big block engines, or Ford small block engines. A bell housing is required to attach the rear of the engine to the Mighty Mount Deluxe unit.. An engine management harness is pretty much what you will find from most wiring harness companies. Basically, it contains all of the necessary functions to make the engine start and run, while also supplying any necessary signals from the computer such as speedometer and tachometer.. Jun 28, 2014  · Sbc 350 how to wire to run on engine stand? I want to start the 350 to see if it works its been sitting for a while. ive seen some forums that have helped me some what still confused..

Apr 12, 2009  · Also because this is a test stand, I'd run 12 or 14 gauge wire for accessories (if needed) and the SWITCH terminal on the starter. HEI's BATT terminal require a 10 gauge wire (in my opinion) in order to guarantee full voltage.. Computer Outputs include an OBD II Diagnostic Port for LS based engines, or a scanner port for LT1 and earlier, a Check Engine / Service Engine Light wire, an electronic Vehicle Speed signal, a Tachometer signal wire, and where appropriate, a Brake Switch Connection (to unlock your torque converter).. Aug 29, 2017  · How to Change a Car Engine. An engine uses a number of different fluids in regular use and all of it will need to be drained prior to removing the engine. Start with the engine oil, which can be drained through the oil drain plug on the oil pan. Connect the engine wiring harness. Depending on the make, year, and model of your.

Pin 9 - Dk Green/White - Fuel Pump Relay Control - This wire the PCM supplies 12v+ to control a relay for fuel pump. PCM will turn on the fuel pump for 2 seconds at initial key on. When the engine cranks or starts, the fuel pump will then continue to run, untill the engine stops, or you shut off the key.. The wire would run out to the o/s of the engine bay and towards the front of the car, across the front to the n/s and back to the n/s bulkhead where it would connect to the chock block under the n/s dash.. Feb 21, 2001  · To simply start the engine on the bench, 1. Attach + side of battery to threaded stud on starter and neg side to any nut on the tranny. 2. Run a wire from the.

What basic wiring is neeed to start a 56 dodge engine thats on an engine stand// starter wire to where--resistor - Answered by a verified Classic Car Mechanic. We use cookies to give you the best possible experience on our website.. Mar 04, 2012  · Now that the engine is off it and presumably got put in the guy's car today, the stand will get cleaned, painted, and get the wiring a little more cleaned up looking. Engine run-in stands are really nice to have, as they allow a person to catch a lot of potential problems before the engine is installed in the car..

Help wiring a Engine Run stand please! (Easy diagram) | Moparts ... 7209254-EngineRunStandwiring.jpg ...
LS1 Stand Alone Wire Harness Fuse Block Question... - LS1TECH ... LS1 Stand Alone Wire Harness Fuse Block Question...-engine.jpg ...
Mighty Mount - World Best Engine Test Stand - Engine Stand & Test ... Mighty Mount Build and Run
Shop K Tool International Automotive Engine Stand at Lowes.com K Tool International Automotive Engine Stand
Engine Start / Test Stand Plans - Ford, GM, Mopar | eBay
Need help wiring my 318 on Engine Test Stand
Engine Run Stand - Hughs Hand Built This new stand is fairly simple, just a furniture dolly, a regular XS650 engine stand, and a set of “handlebars” to hold all the miscellaneous wiring…
Help Wiring Engine Test Stand - CorvetteForum - Chevrolet Corvette ... Is there a ground off the ignition switch? There is a center post on my switch that is not labeled.
Help wiring a Engine Run stand please! (Easy diagram) | Moparts ... 7209875-7209254-EngineRunStandwiring.jpg ...
LSA, LS9, LS2, LS3 Stand Alone Engine Harness For E67 ECU - CPW ... $599.00 ...
Starting An Engine That's Out Of The Car - Chevelle Tech
Engine Stand » Tom Mackie Racing
Help wiring a Engine Run stand please! (Easy diagram) | Moparts ... 7209257-enginerunstand.jpg ...
engine break in stand wiring critique - Ford Truck Enthusiasts Forums Attached Images

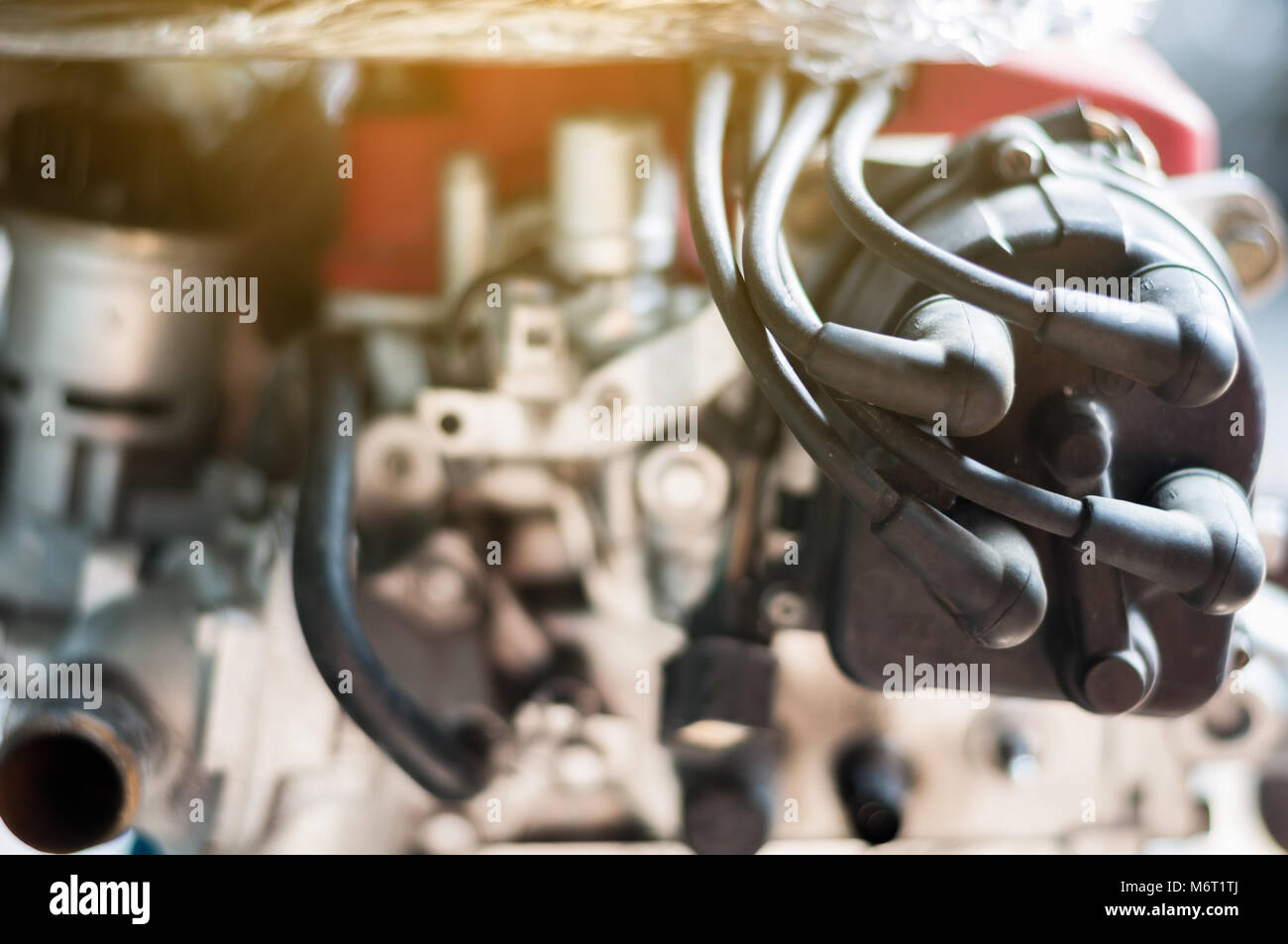

Ignition Wires Stock Photos & Ignition Wires Stock Images - Alamy Close up coil distributor wire four cylinder engine stand on car with sunlight - Stock Image
